Application

-Military police shooting training

-IPSC-IDPA-3GUNS shooters training

-Shooting Ranges and Defense Agencies

-Law enforcement organizations

Profile

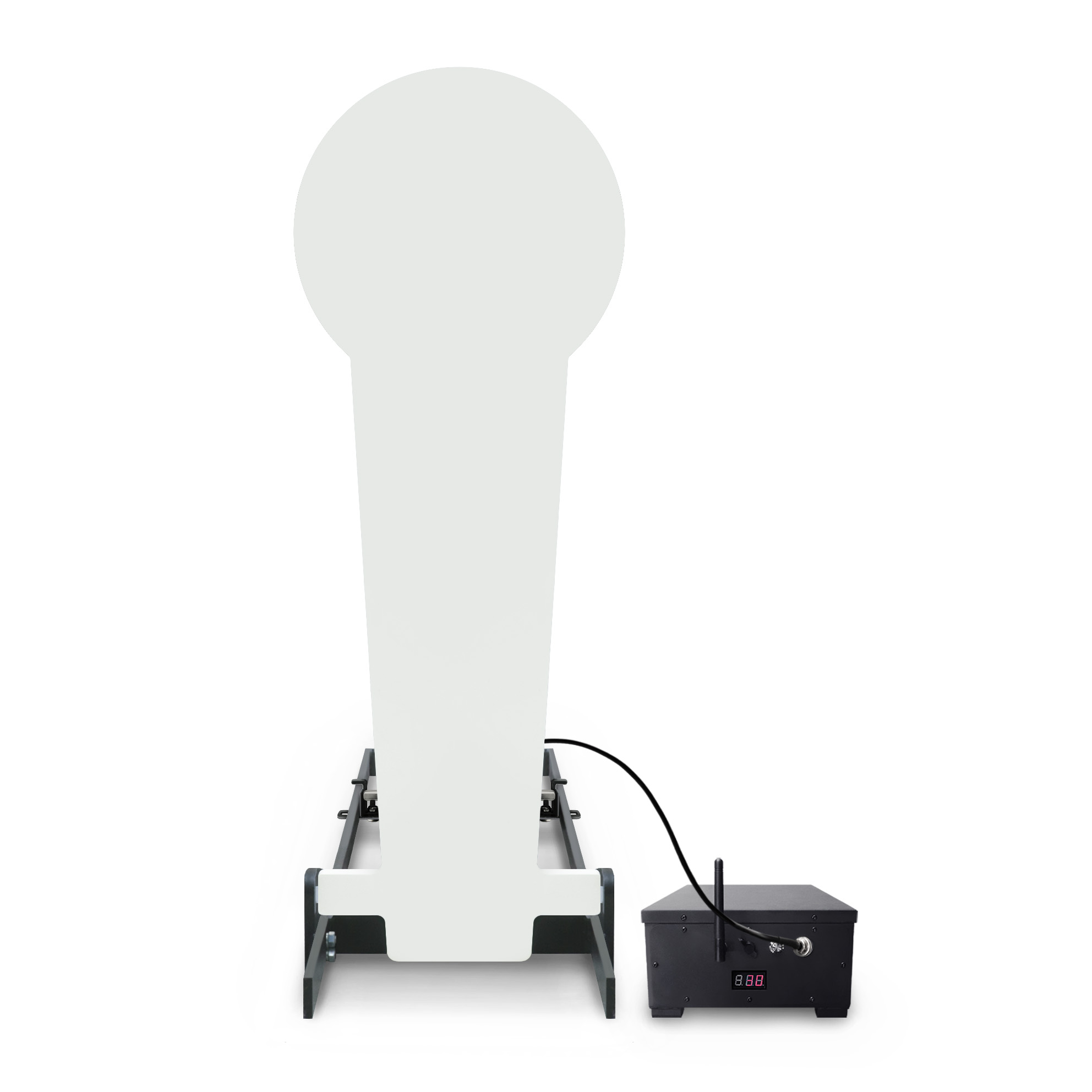

The Auto-Reset Steel Target System (ART100) delivers an advanced training solution for professional shooting ranges, military, and law enforcement agencies. Designed for durability, its high strength AR500 target surface withstands repeated live fire from pistols, rifles, and shotguns at distances of 100 m and beyond.

With a reliable wireless remote control range of up to 1 km, the system supports multi-target linkage and automatic reset-ideal for dynamic, scenario-based drills. A variety of target types, such as Popper, Pepper, and LS torso, are available to match varied training objectives.

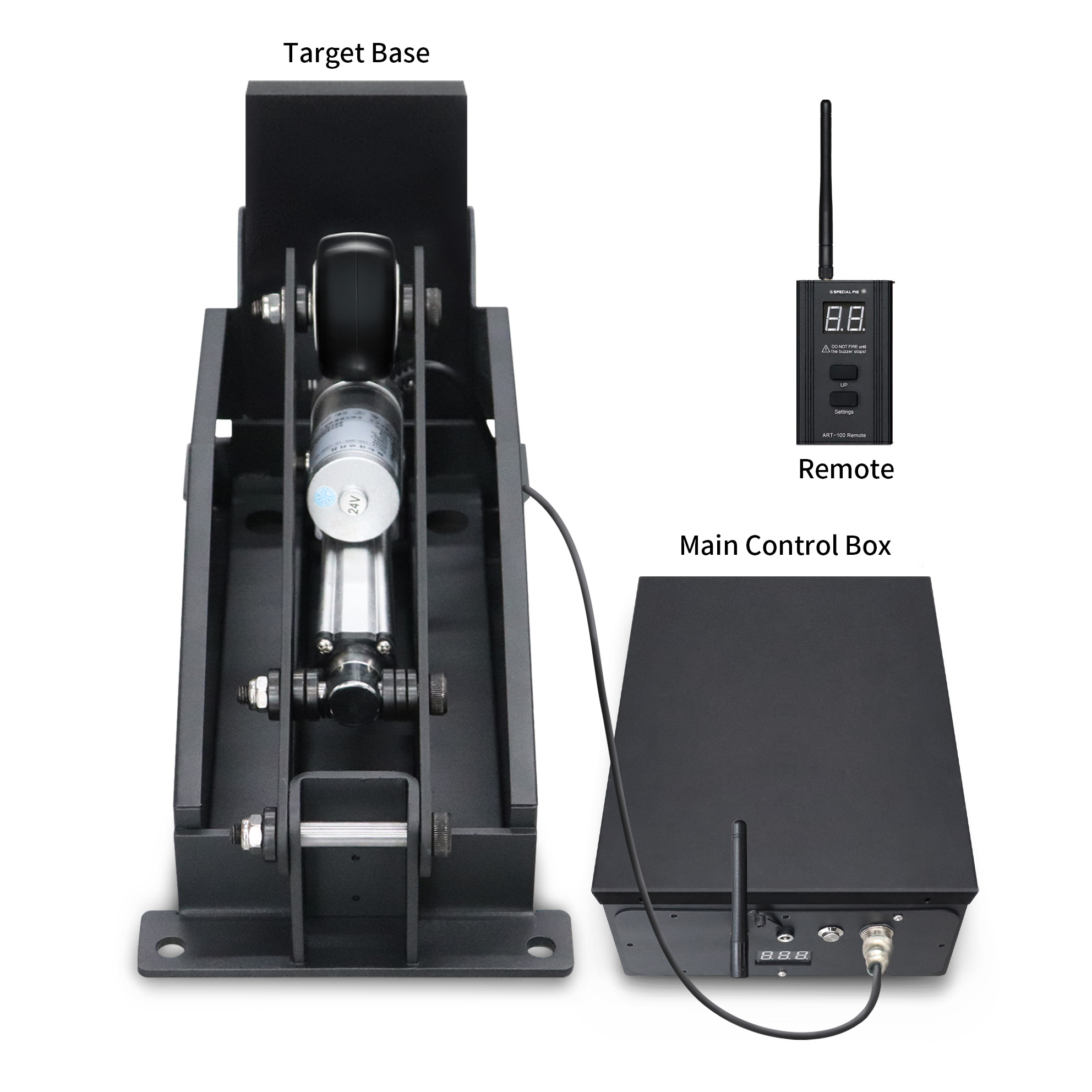

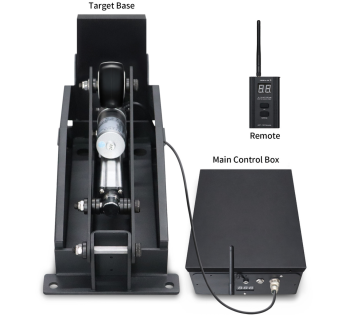

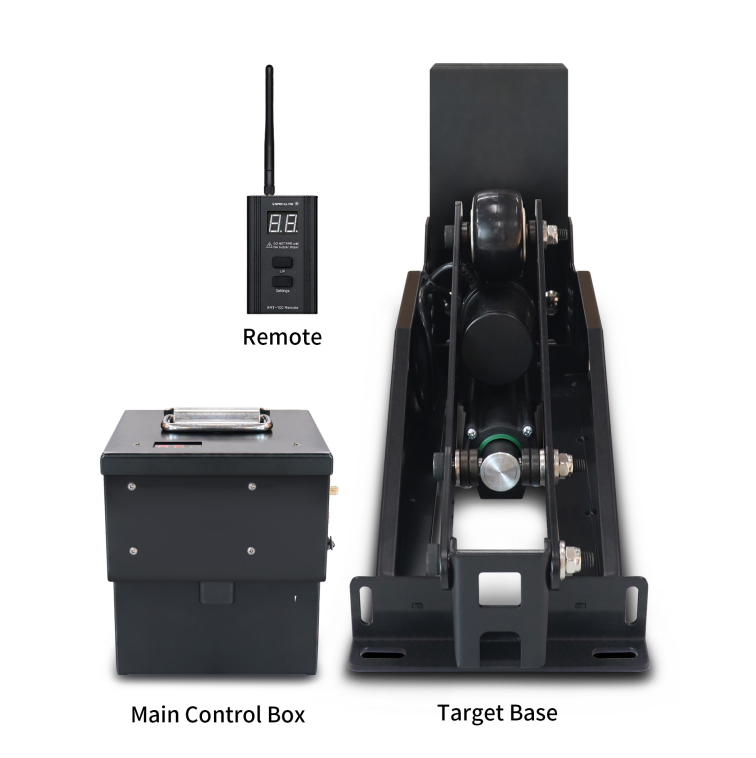

The system is engineered for quick and simple field deployment: its weather-resistant base remains on-site permanently, while only the lightweight control box (~7 kg) and cables need to be transported for storage or charging.

Features

1. Universal Target Base

Our universal target base accepts a wide range of steel plates, letting you avoid costly shipping of heavy targets and reduce total investment.

2. Automatic Reset Function

The system supports remote-controlled automatic reset after the target is raised or powered on.

3. Intelligent and Efficient Control

With a remote communication range of up to 1000 meters, it supports multi-target linkage operations, simplifying complex training procedures.

4. Fast Response

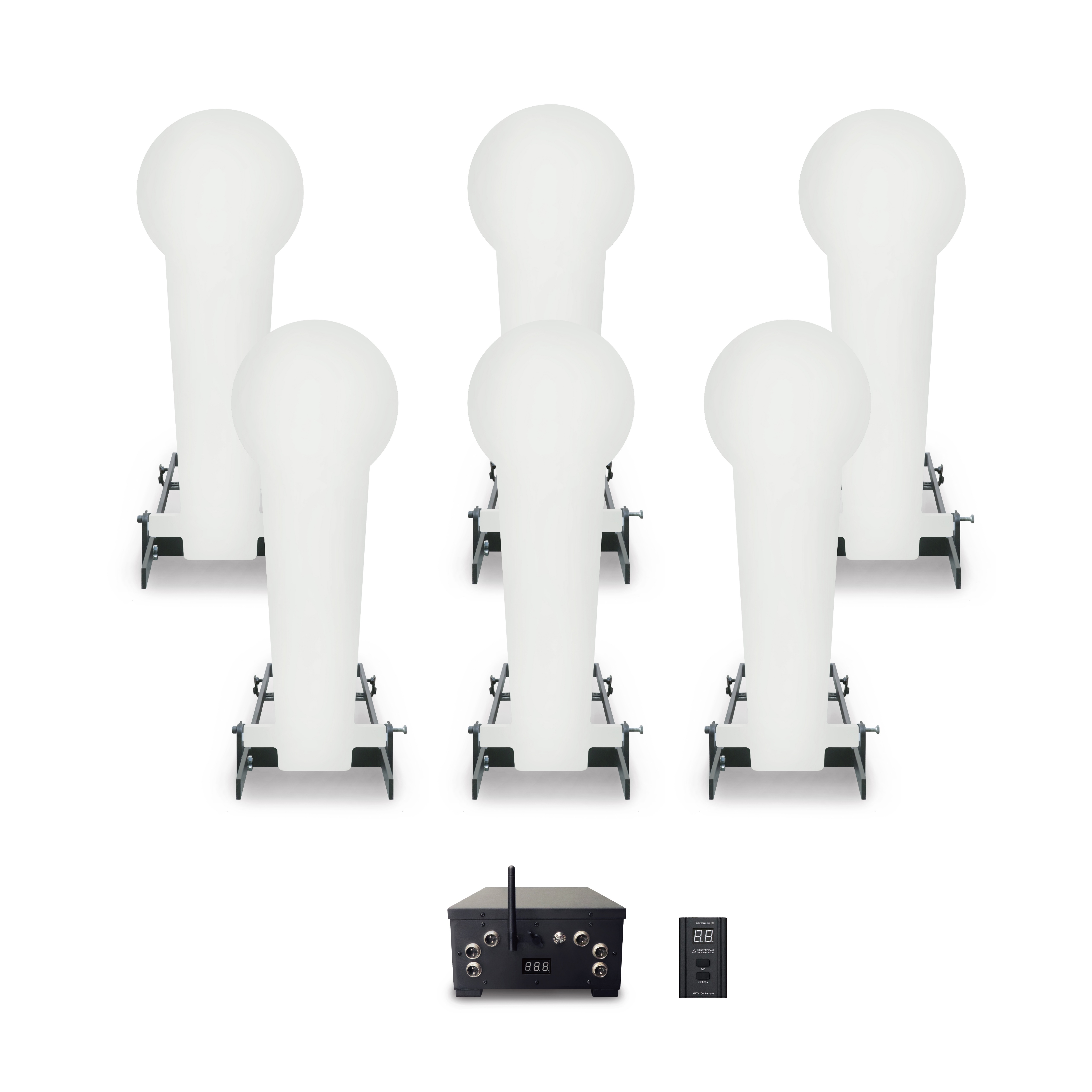

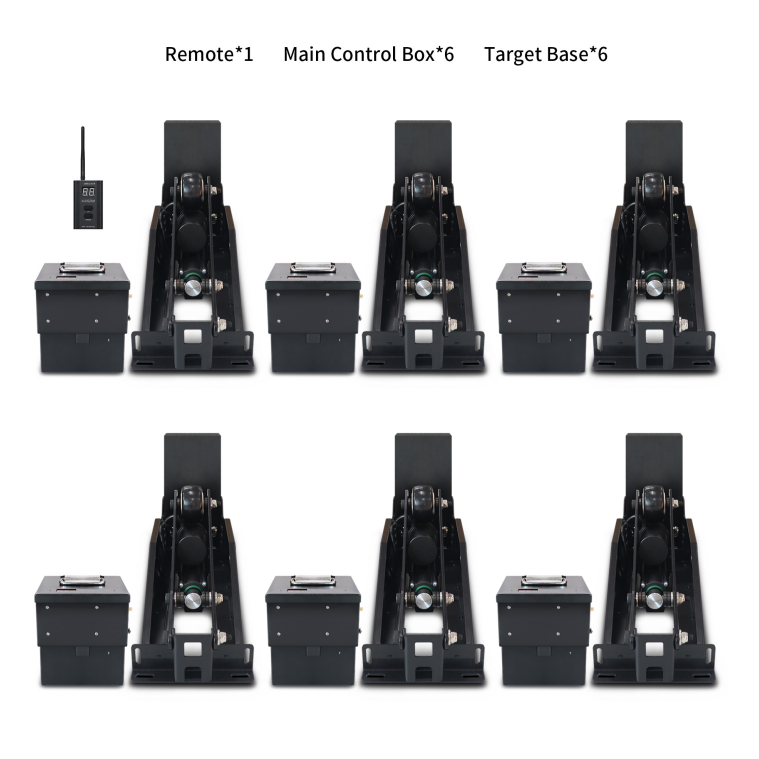

The target reset time is only 11 seconds for a single target. It also supports simultaneous operation of up to 6 targets, with a reset time of 1 minute, significantly enhancing training efficiency.

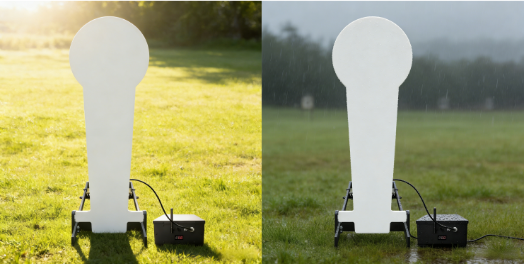

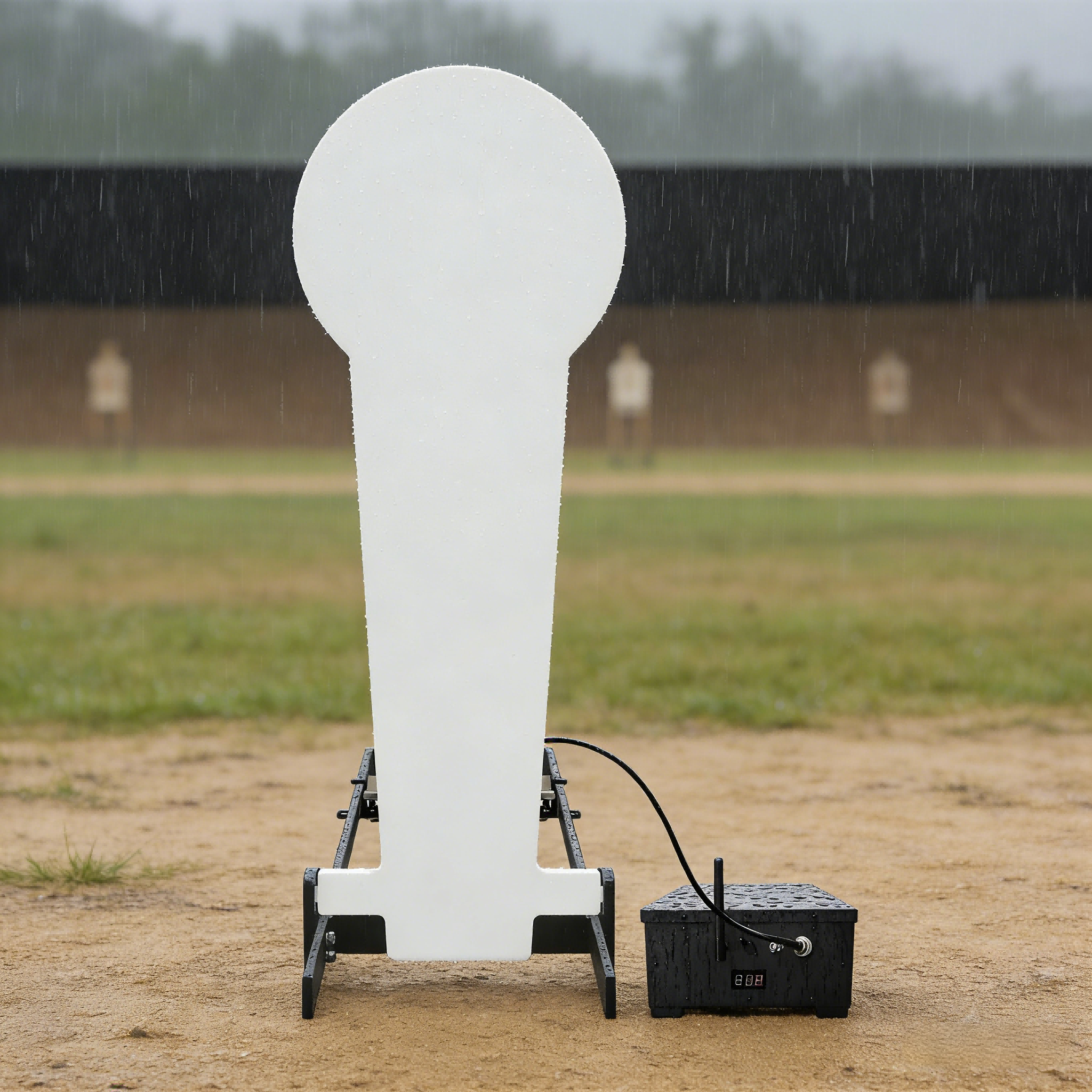

5. Weather-Resistant Base for Hassle-Free Outdoor Use

The target base with reset mechanism is designed to withstand outdoor conditions (sun, rain, cold, humidity) and can be left on the range without additional protection or storage.

6. Stability

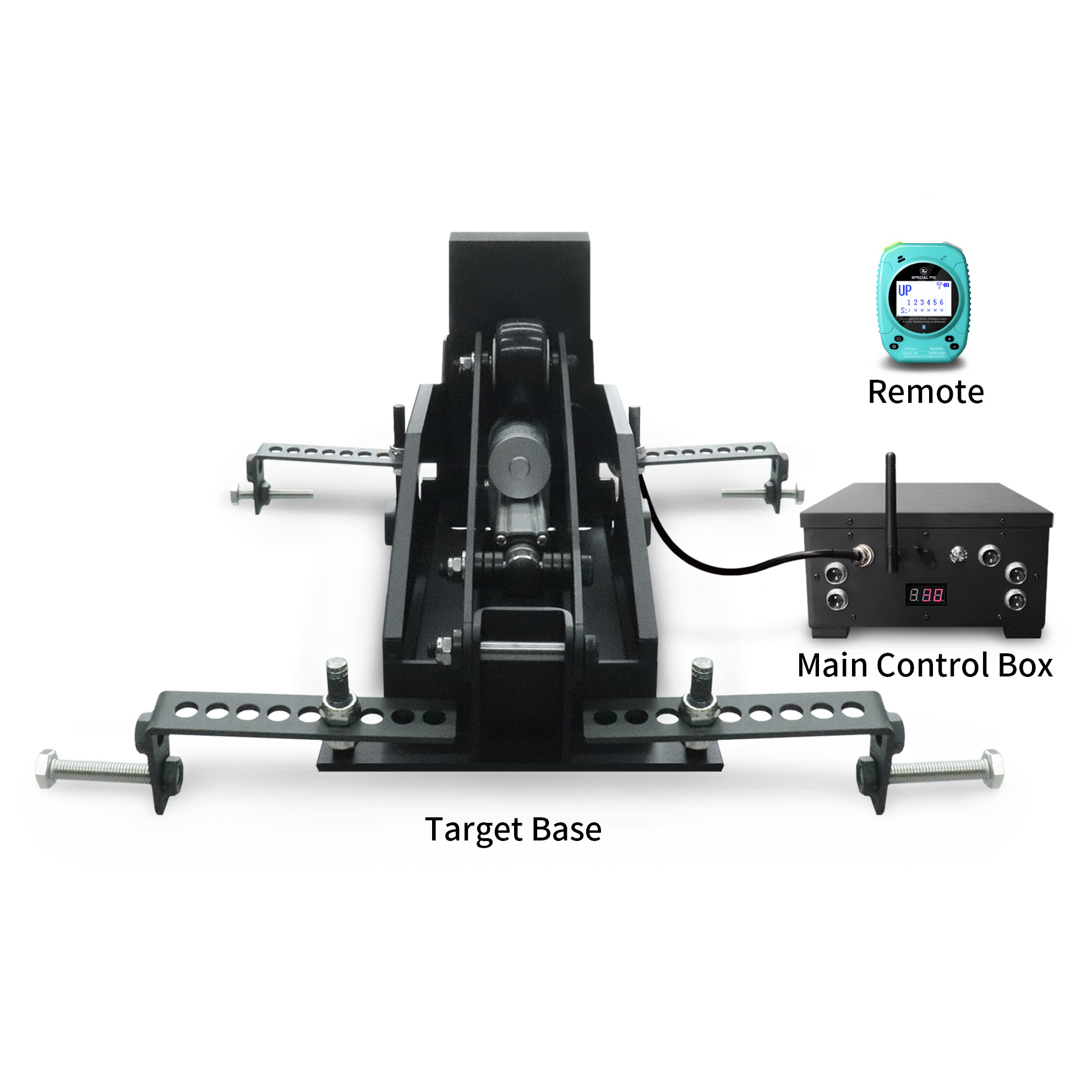

Designed with an adjustable target base, it can adapt to uneven ground up to 15°. Its compact structure, make it easy to quickly deploy.

7. Long Battery Life

Remote: equipped with a Type-C charging port, it is powered by a built-in battery and uses a 5V 2A charger. A single target can support up to 2000 reset cycles on a full charge.

Main Control Box: Equipped with one 12V 20Ah lead-acid battery or a direct 24V 6A power supply, a single target can support up to 2000 reset cycles on a full charge.

8. High Strength and Durability Steel Target

The target surface is made of high-strength AR500 material, offering excellent wear resistance and impact resistance. It is suitable for high-frequency live-fire training with various firearms, including pistols, rifles, and shotguns.
