Introduction

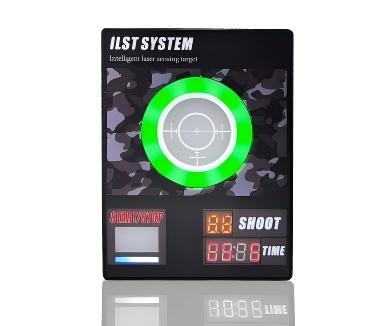

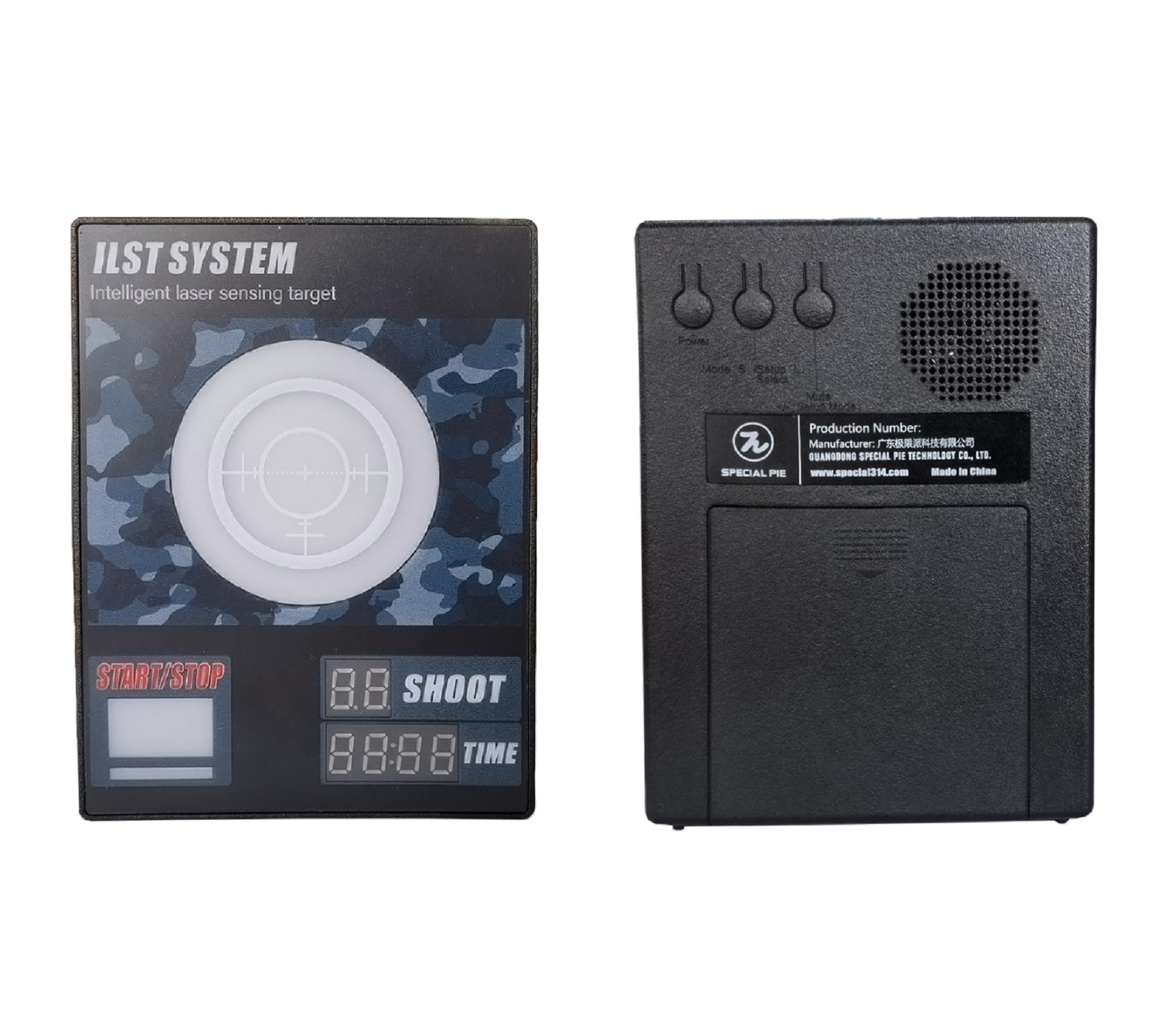

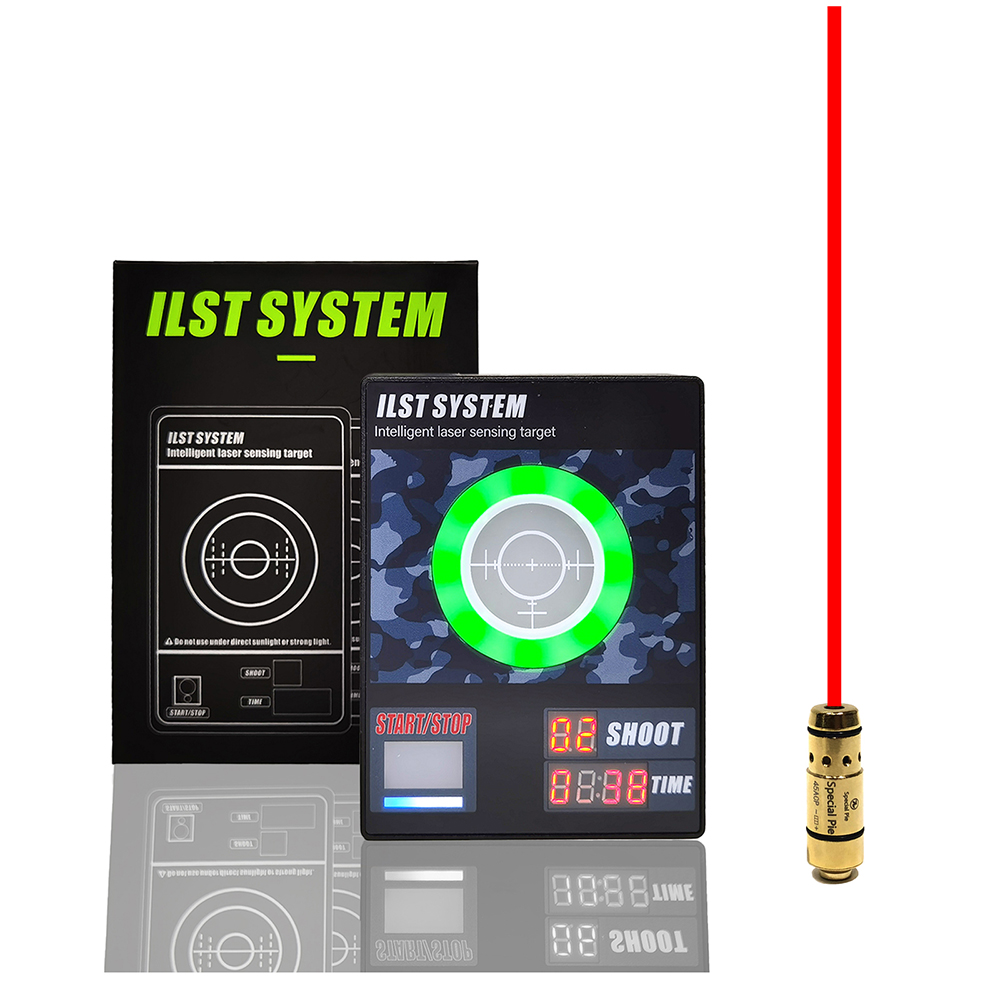

The J10C laser sensing target can make corresponding audio-visual feedback by receiving the laser signal from the laser shooting simulator. It can be used with L17pro laser shooting simulator, laser tube and laser bullet that are designed by Special Pie, which makes them form a laser shooting training system for shooters. J10C target provides 3 shooting training modes to meet the training needs of different shooters and improve their shooting speed and accuracy.

1.   Built-in Speaker and timer, it can issue voice commands.

When J10C being hit, it will display shots and time, shooter can review the shooting scores by short pressing review button. With built-in speaker , it will simulate the real shooting sound , bringing the better shooting experience to the shooters.

2.   Form a smart target system automatically

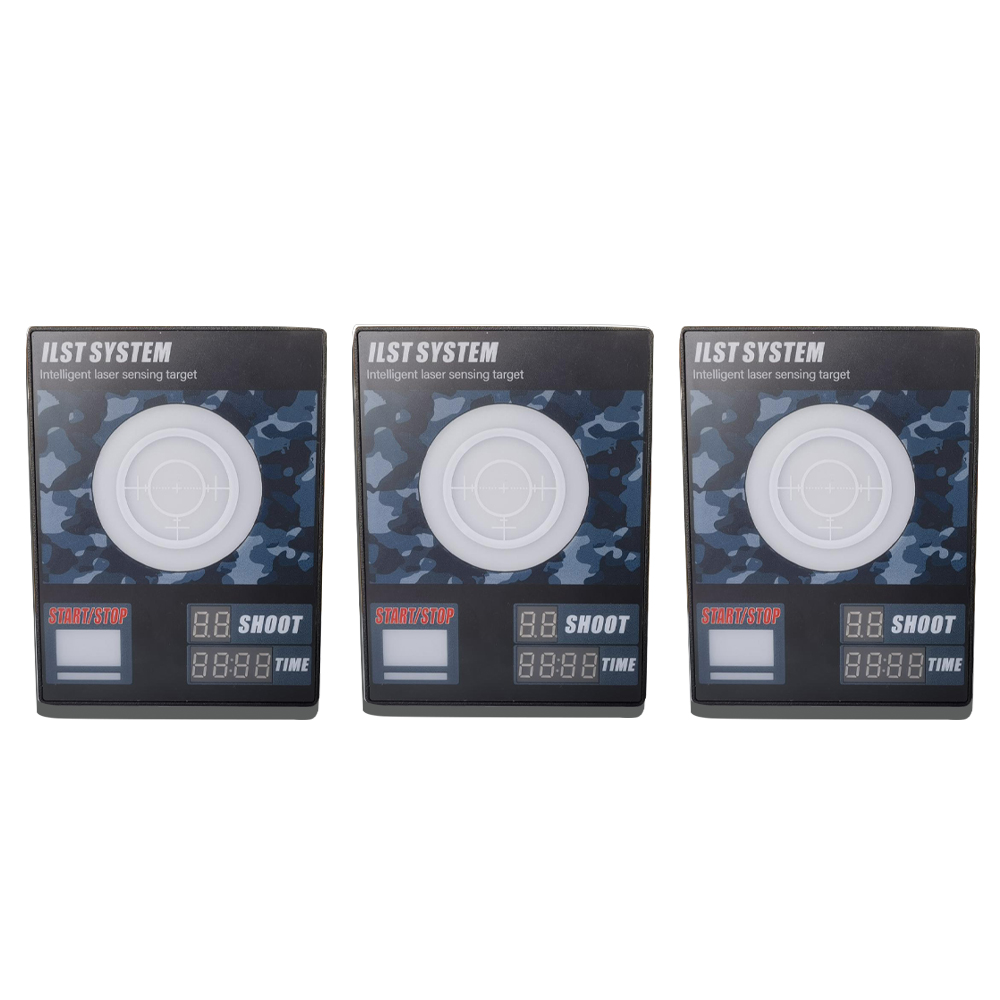

They will get connected automatically, when 2 or more J10C targets are put together, they will form a smart shooting target system automatically. Shooters need to follow the rules to shoot the right target. This shooting mode can improve user's shooting speed and accuracy greatly.

3.   Two levels of volume, free adjustment.

The volume is adjustable, adapt to the training needs of different places.

(Adjustment method：Short press the power button 3 times after booting to adjust volume)

4.   Suitable for most of the laser shooting simulator on the market.

Three Shooting Modes

1. Mode introduction

Mode 1(Synchronized Time Mode), When using multiple J10C Targets, all targets can be synchronized. Each target can be shot 99 times max or up to 99 secs after starting the exercise.

Mode 2(Synchronized Time & Double Tap Mode), When using multiple J10C Targets, all targets can be synchronized. Each target can be shot twice max after starting the exercise.

Mode 3(Intelligent Target Mode), Works when there are multiple J10C linked together. After setting up the total no. of targets, all the targets will automatically form an intelligent target system. Two targets will be activated at a time, and each target needs to be shot within 1 sec. After 1 sec, the next group of two targets will be activated, and so forth.

2. Mode setting

Short press the mode button to cycle through the settings, and there are three modes.

Mode 3 setting：Long press the menu button on the homepage enter the mode setting, chan(Channel), add(address), Number(NO), Total number of targets(NU), short press the mode button to cycle through the settings, short press the “+”button to add 1 to the current option, long press the menu button to quit after finishing setting.

Note: The set parameters, address and numbers are only valid for this target, and other data (channels, address, total number of targets, mode) will be synchronized to other targets.
